Travelator details

Description

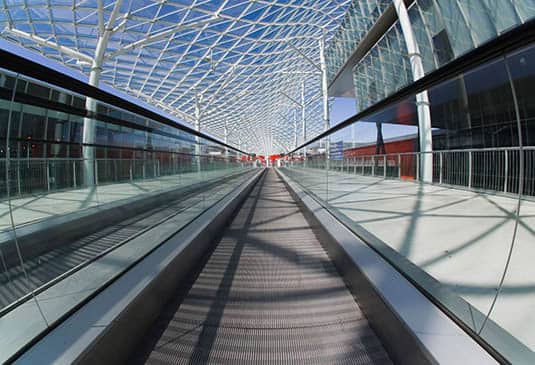

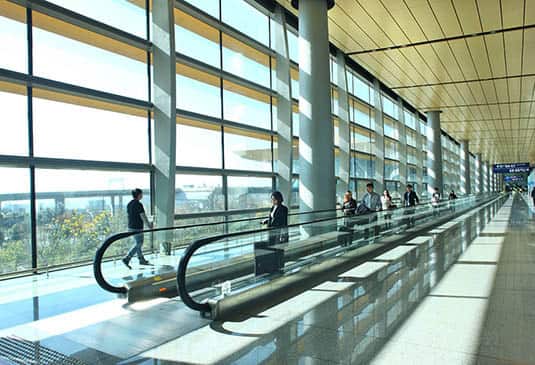

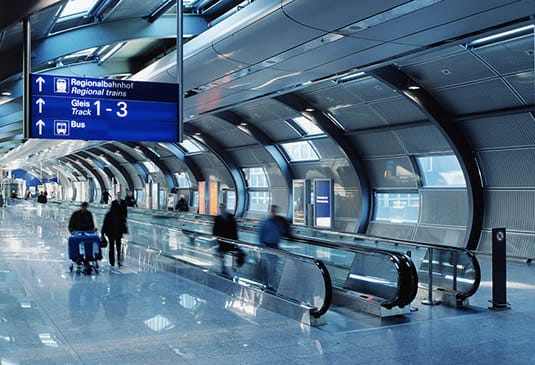

The KONE TransitMaster™ 165 travelator is a heavy-duty autowalk primarily targeted towards the infrastructure segment who need flat escalator solutions for demanding traffic conditions. This includes the need for an airport moving walkway, a flat escalator in a railway station, as well as a travelator in a stadium or transit center.

Specifications

  • Operational environment: indoor, semi-outdoor
  • Speed: 0.75, 0.65, 0.5 m/s; 0.4 m/s with inverter
  • Inclination: 0-6º
  • Pallet width: 800, 1000, 1100 mm
  • Vertical rise: up to 100 m

Travelator safety

  • Safety is the starting point for every KONE travelator. The TransitMaster™ 165 travelator conforms to all local and international safety codes.
  • We provide standard autowalk safety features including comb plate impact device switches and emergency stop buttons for passengers.

Tools and downloads

Contact us

Travelator options and highlights

Travelmaster 165

Travelator eco-efficiency

  • Eco-efficient operation can save energy by slowing down or stopping the autowalk when it is not in use or when traffic is low
  • Long lasting LED lighting on a flat escalator is up to 80% more efficient than fluorescent lighting and lasts up to 10 times longer
  • Reduced autowalk speed of 0.4m/s saves energy depending on passenger traffic, e.g. an airport moving walkway
  • The lubrication-free step chain saves oil, reduces chain wear, and decreases fire risk for a moving walkway
Travelmaster 165

Travelator safety

In addition to the standard travelator safety features, we offer optional safety features including:

  • New autowalk traffic signalisation solutions and coloured step demarcations for extra visual guidance
  • Halogen-free, fire-resistant wiring
  • Seismic movement options
  • Extensive monitoring options such as KONE Remote Monitoring™ and KONE E-link™ to integrate with your building management systems
Travelmaster 165

Travelator design

High quality travelator design for the best possible user experience:

  • Innovative and attractive travelator design lighting solutions that also improve passenger guidance and safety on moving walkways
  • A wide range of travelator design options to create stunning visual effects and perfectly match your building’s architecture
  • High quality component finishes and a harmonised look and feel throughout the KONE product portfolio

Contact us for a detailed cost estimate

KONE escalators and autowalks

Product name
Type
Segment
Maximum rise
Speed
Inclination
Duty cycle24/7 Connected Services availableEnergy-efficiency class
TravelMaster 110
escalatorCommercial, retail, hotel, office, multi-use, stadium, medical
13 m
0.4, 0.5 m/s
30°, 35°
12-16 hours/day
YA+++
TravelMaster 115
Inclined autowalkCommercial, retail, hotel, office, multi-use, stadium, medical
7 m
0.5 m/s
10°, 12°
12-16 hours/day
YA+++
TransitMaster 120
escalatorInfrastructure
15 m
0.4, 0.5, 0.65, 0.75 m/s27.3°, 30°, 35°20-24 hours/dayYA+++
TransitMaster 140
escalatorInfrastructure
35 m
0.4, 0.5, 0.65, 0.75 m/s27.3°, 30°20-24 hours/dayYA+++
TransitMaster 165
horizontal autowalkInfrastructure100 m length100 m length0.4, 0.5, 0.65, 0.75 m/s
0-6°
20-24 hours/day
YA+++
