KONE INNOTRACK™
A revolutionary autowalk solution that requires no pit and offers unparalleled flexibility
Product information
Description

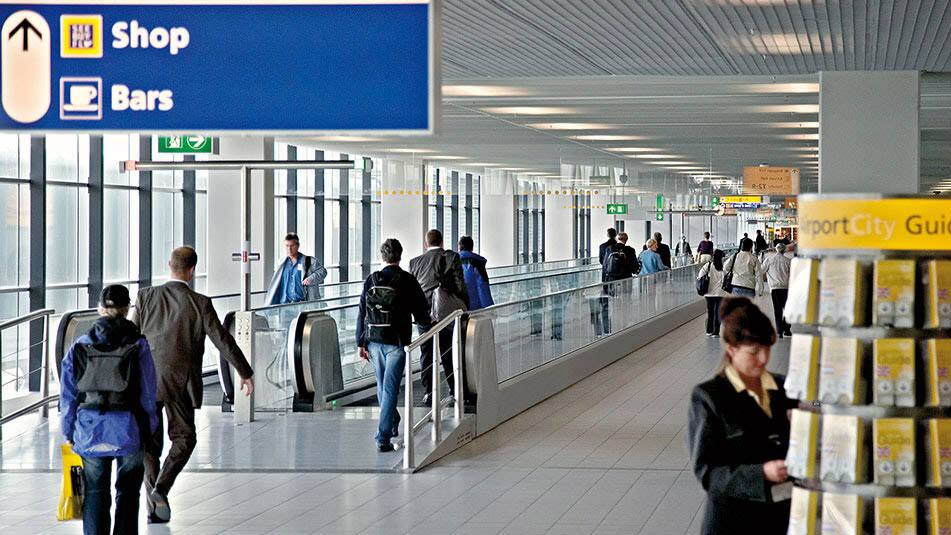

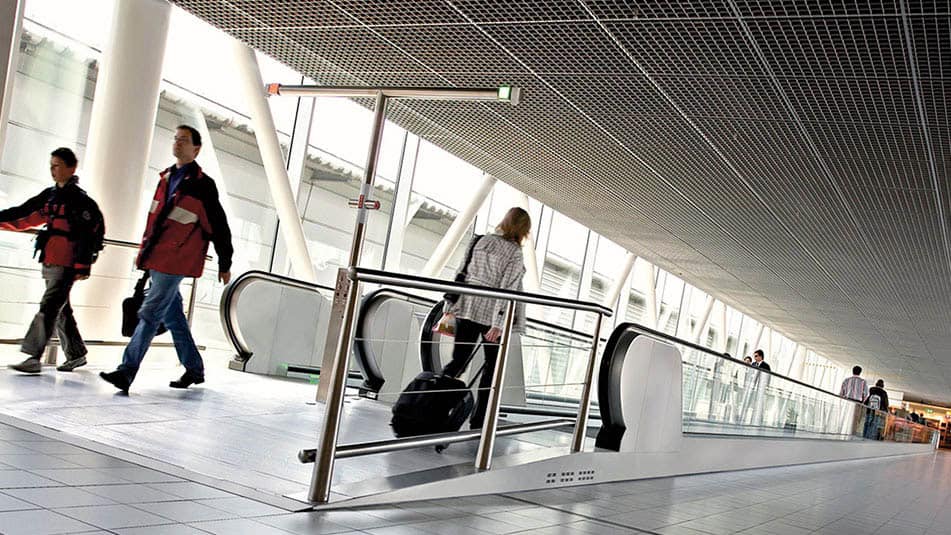

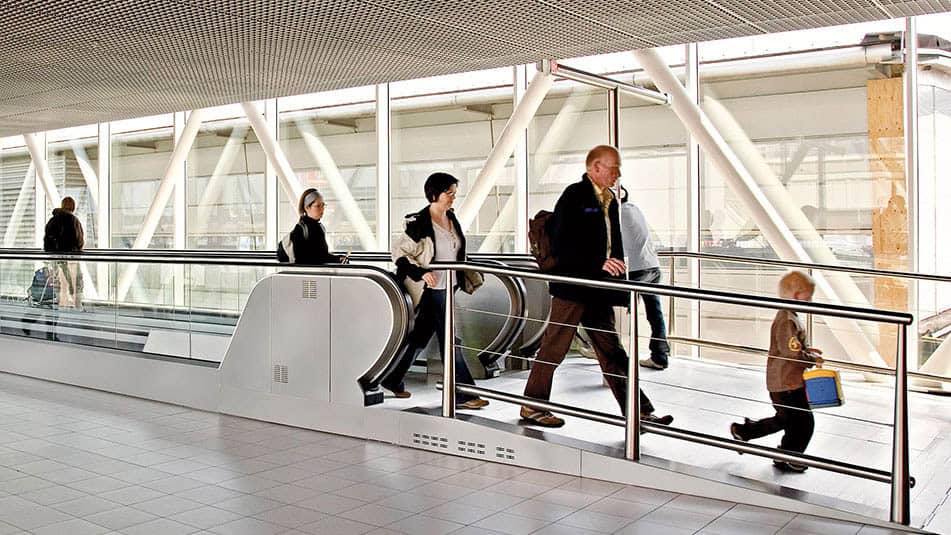

KONE InnoTrack ™ is the first autowalk that doesn’t need a pit. Its revolutionary modular design makes it ideal for improving people flow in existing buildings. You can easily adjust the length, change the color, and reinstall the autowalk in another location.
Specifications
- Operational environment: Indoor
- Speed: 0.5, 0.65 m/s
- Inclination: 0º
- Step width: 1000, 1400 mm
- Length: up to 60 m
DESIGN
- The components traditionally placed in the pit have been moved to the balustrades
- The pallets lower themselves directly under the stepping surface instead of circling the entire truss to the bottom
- The modular design of the truss makes it simple to assemble and modify
Tools and downloads
Contact us for a detailed cost estimate
Related topics
Other escalator solutions
| Product name
| Description (+type)
| Segment
| Maximum rise
| Speed
| Inclination
| Duty cycle
| Environment
|
| TravelMaster™ 110
| escalator | Commercial, retail, hotel, office
| 13 m
| 0.4, 0.5 m/s
| 30°, 35°
| 12-16 hours/day
| Indoor, outdoor, semi-outdoor
|
| TravelMaster™ 115
| Inclined autowalk | Commercial, retail, hotel, office
| 7 m
| 0.5 m/s
| 10°, 12°
| 12-16 hours/day
| Indoor, semi-outdoor
|
| TransitMaster™ 120
| escalator | Infrastructure
| 15 m
| 0.4, 0.5, 0.65, 0.75 m/s | 27.3°, 30°, 35° | 20-24 hours/day | Indoor, outdoor
|
| TransitMaster™ 140
| escalator | Infrastructure
| 18 m
| 0.4, 0.5, 0.65, 0.75 m/s | 27.3°, 30° | 20-24 hours/day | Indoor, semi-outdoor |
| TransitMaster™ 165
| horizontal autowalk | Infrastructure
| 15-60 m
| 0.4, 0.5, 0.65, 0.75 m/s
| 0-6°
| 20-24 hours/day
| Indoor, semi-outdoor |
| TransitMaster™ 185
| horizontal autowalk | Infrastructure
| 15-100 m
| 0.4, 0.5, 0.65, 0.75 m/s
| 0-6°
| 20-24 hours/day
| Indoor, semi-outdoor |
